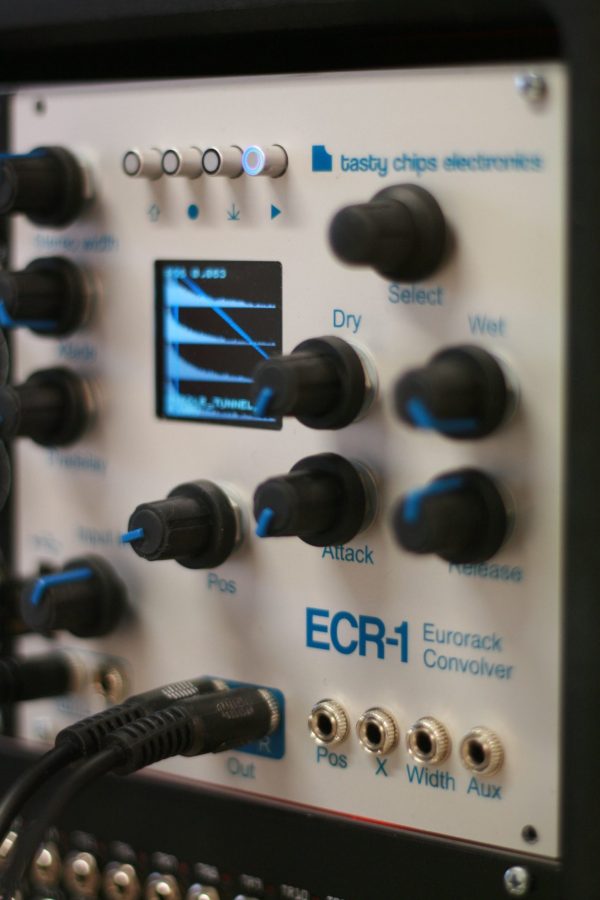

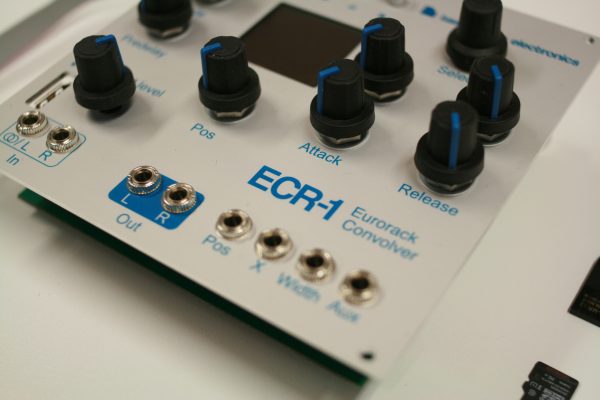

ECR-1 Eurorack convolver

499.00

The ECR-1 Eurorack convolver. Not in stock. Superceded by the ECR+.

Out of stock

Categories: , , ,

Description

The ECR Eurorack convolver. Not in stock. Superceded by the ECR+.

Specifications

  • 2×2 true stereo matrix
  • 48 kHz stereo input (90 dB SNR) and output (100 dB SNR)
  • 1.5″ true color 128×128 pixel OLED
  • USB2.0 port with Micro SD card adapter, SD card included.
  • Saves samples as 32 bit float stereo WAV files.
  • 10 bit resolution and ~50 Hz refresh on potentiometer action.
  • 12V, -12V powered (5V busboard line not used)

Includes

  • ribbon cable for power
  • response sample SD card
  • USB-SD card adapter

Measurements

  • 130 mm / 25.6 HP wide
  • approx 5cm deep (counting from the front plate)
  • Scratch proof and solvent proof anodized front plate.

Power consumption

  • 12V: 180 mA (idle) – 400 mA (longest reverbs and continuously modulating)
  • -12V: 21 mA

Additional information

Weight 1 kg
Dimensions 20 × 20 × 15 cm
